ios-map-ui

Using Swift to create Maps while minimizing reliance on storyboards

Explore the project at github.com/roblabs/ios-map-ui

Mapbox Starter

A starter project for Mapbox maps in iOS

Features

• A starter Mapbox project built off the steps documented at https://www.mapbox.com/install
• Built using Carthage
  • brew install carthage
  • Install by running carthage update
• Made with Xcode Version 9.1 (9B55), and Swift 4
• Updated for Xcode Version 10.3 (10G8) and Swift 5

How to Use

• Add a MGLMapboxAccessToken key to the Info.plist.
  • See https://www.mapbox.com/install/ios/carthage-permission
  • See https://www.mapbox.com/help/how-access-tokens-work/

Screen Shots

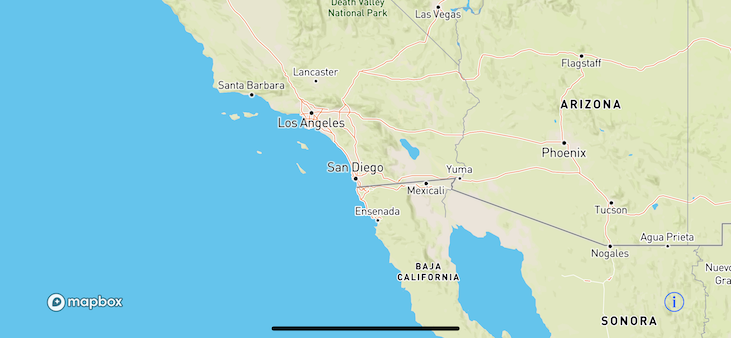

Initial zoom and center

Storyboard

• Built using the option Add with code, so no storyboard was used in this demo. Adding it for reference.

---

Empty Storyboard; all views added via code

---

Mapbox-UIBarButton

A Mapbox map with UIBarButtonItem added using Swift, with minimal use of the storyboard.

Features

• Built upon Mapbox Starter
• Made with Xcode Version 9.1 (9B55), and Swift 4
• Added UIBarButtonItem and code handlers to take action when they are clicked.

  override func viewDidLoad() {
    super.viewDidLoad()

    // MARK:- UIBarButtonItem
    self.navigationItem.leftBarButtonItem = UIBarButtonItem(
        barButtonSystemItem: .search,
        target: self,
        action: #selector(handleLeftBarButton))

    self.navigationItem.rightBarButtonItem = UIBarButtonItem(
      barButtonSystemItem: .action,
      target: self,
      action: #selector(handleRightBarButton))
  }


Screen Shots

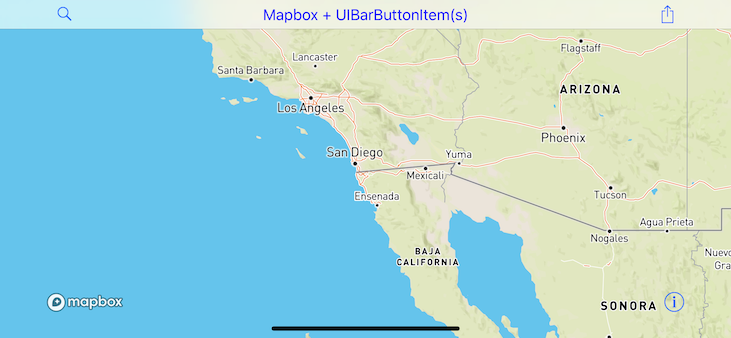

Initial zoom and center

Storyboard

• Added a UINavigationBar, which is done by Embedding the view controller in Navigation Controller
  • Click your view controller
  • Editor > Embed In > Navigation Controller

---

---

Mapbox-Search

A Mapbox map with UISearchBar added using Swift, with minimal use of the storyboard.

Features

• Built upon Mapbox UIBarButtonItem
• Made with Xcode Version 9.1 (9B55), and Swift 4
• Mapbox map disappears when searching and a UITableView pops up with filtered search results
• The Search portion is based on the tutorial called UISearchController Tutorial: Getting Started from RayWenderlich.com. Please see the license file in each file for information.
• Integrating UISearchController is a mixture of Storyboards and Swift code.
• Based on event handlers for when the search is started or ended, the Mapbox mapView is hidden or displayed.

Screen Shots

Storyboard

---

---

MapKit Starter

To make a MapKit view without a storyboard

1. In Info.plist, delete the key Main Storyboard file base name
2. Be sure to add the Maps Capability in Project > Capabilities

3. In your AppDelegate.swift, ``` func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {

   window = UIWindow(frame: UIScreen.main.bounds)

   if let window = window { window.backgroundColor = UIColor.white window.rootViewController = ViewController() window.makeKeyAndVisible() }

   return true } ```
